The core technology behind MachinaTrader algorithmic trading is an event-based, streaming analysis system called the Machina Engine. The Machina Engine attempts to model the stream of time as accurately as possible, presenting data ("events") to your algorithms in the order it arrives, as you would experience in reality.
All MachinaTrader algorithms have this time-stream baked in as the primary event handler:
Slice object represents all of the data at a moment of time, a "time-slice". No matter what data you request, you receive it in the order created according to simulated algorithm time. By only letting your algorithm see the present and past moments, we can prevent the most common quantitative-analysis error, look-ahead bias.
Ticks, Bars and the Time Frontier
Data comes in two different "shapes" according to the time period it covers: point values, or period values. These have different properties in the Machina Engine that determine when the data is emitted to your algorithm. The coordination of emitting this data is controlled by the Time Frontier. In MachinaTrader, Ticks are point values, and Bars have a period.

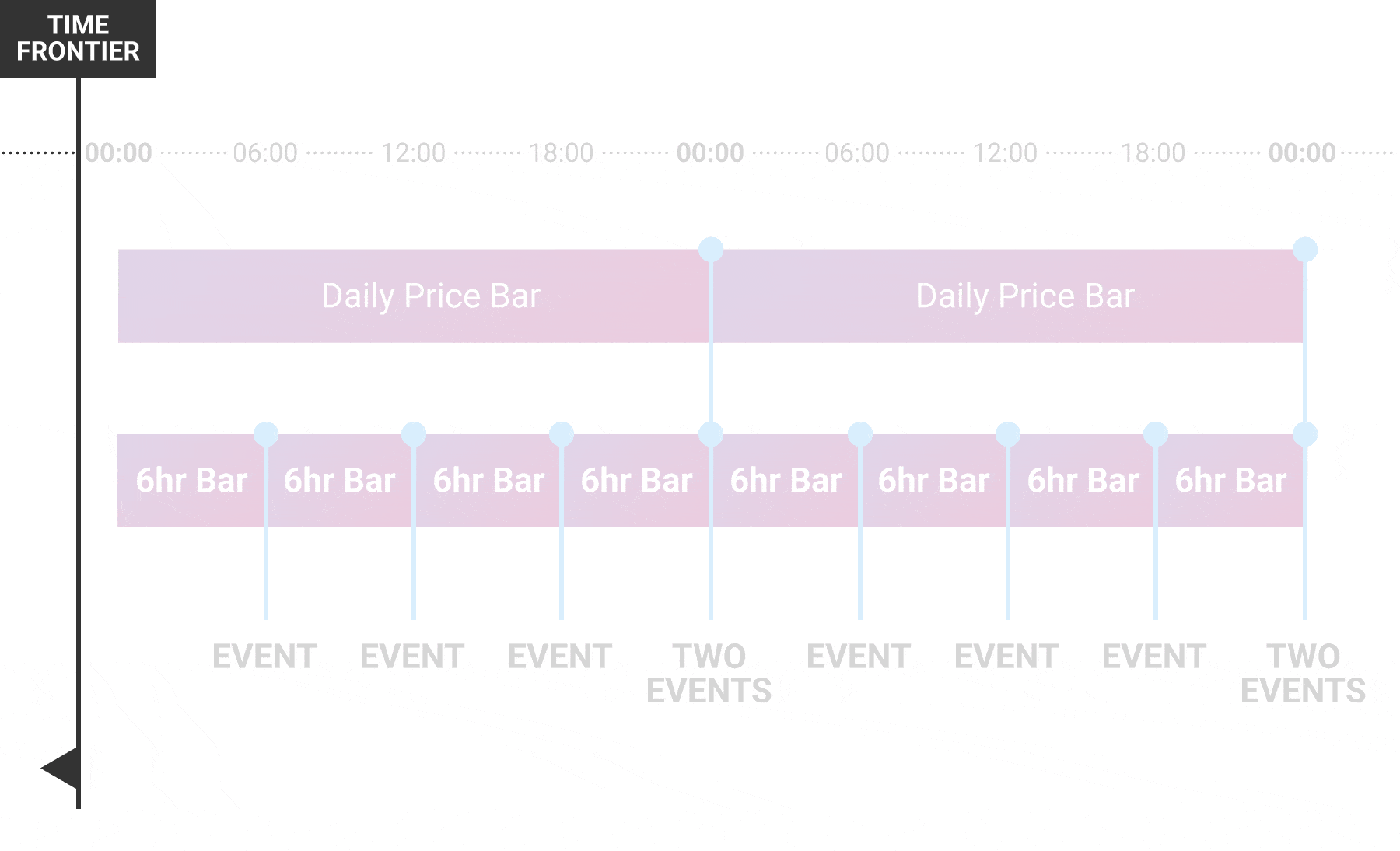

The Time Frontier
MachinaTrader allows your algorithm to request data for multiple securities and multiple resolutions. This creates a situation where one of your data subscriptions is ready to emit, but another subscription with a longer period may still be constructing its bar. To coordinate this data we use the End Time of a data point to transmit it to your algorithm.
Once a datapoint’s EndTime has passed, it will be transmitted to your algorithm’s
OnData() method. For bar data, this is the beginning of the next bar. Your algorithm is only permitted to access values of securities from before this Time Frontier, preventing you from accidentally looking into the future.
Time property in your algorithm is always equal to this Time Frontier. This is also used as the timestamp for any logging and debugging messages.
Bar Data – Period Values
Bar data represents the aggregation of a period of data into a single object. In MachinaTrader, we make this easy for you by pre-aggregating billions of raw trade-ticks into Trade Bars, and quote-ticks into Quote Bars.
The close of a bar is not known until the start of the next bar, which can sometimes be confusing. For example, a price bar for Friday will include all the ticks from Friday 00:00 to Friday 23:59.99999, but it will actually be emitted to your algorithm on Saturday at midnight. Because of this, any orders you create after analyzing the Friday data will be sent to your brokerage on Saturday, when most traditionl markets are closed. MachinaTrader automatically turns your order into a
MarketOnOpen order, which will be filled Monday morning.

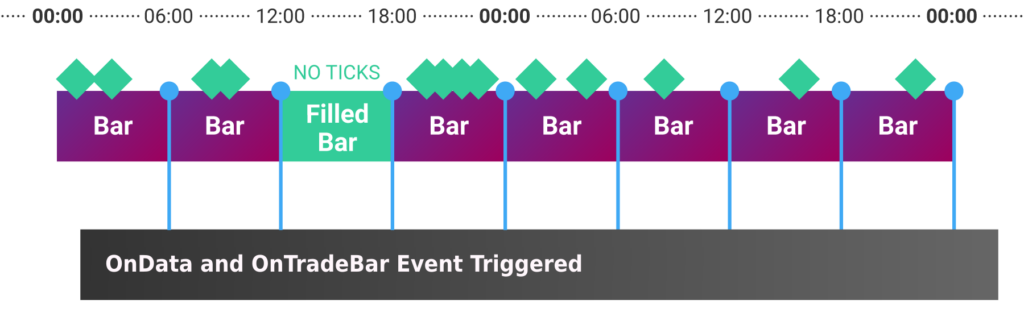

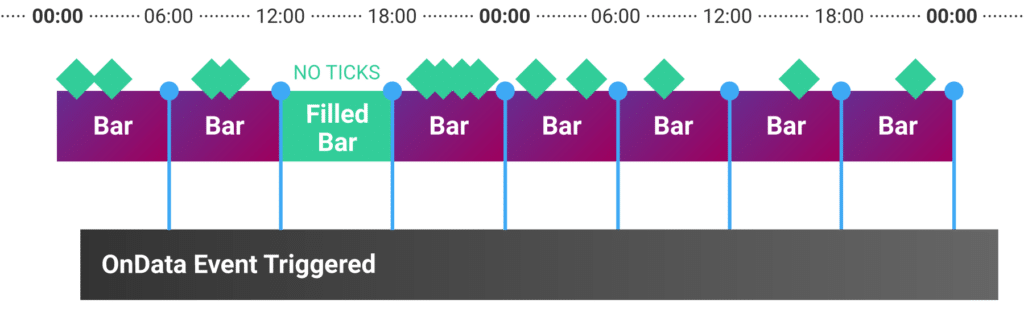

When there are no ticks during a period, the previous bar transmitted is copied and emitted at the request resolution. In MachinaTrader, this is the default behavior for bar data and it is referred to as "filling the data forward". You can configure whether this is enabled when you request the security data
MachinaTrader provides data in Second, Minute, Hour, and Daily bar format. To create other periods of bars, you need to consolidate these short periods into larger ones.
Tick Data – Point Values
Tick data represents a single trade or quote made on the market. It is a discrete event that does not have a period of time attached to it. These events are emitted as soon as they arrive at the Machina Engine.
A Tick object has the same value of
EndTime because it has no period. Tick objects represent instantaneous point values and cannot be filled forward.
Batch vs Stream Analysis
Backtesting platforms come in two general varieties: "batch processing" or "event streaming".
Batch processing backtesting is much simpler. It loads all data into an array and passes it to your algorithm for analysis. Because your algorithm has access to future data points, it is easy to introduce look-ahead bias. Most home-grown analysis tools are batch systems.
Machina Engine is a streaming analysis system. In live trading, data points are generated one after another over time. MachinaTrader models this in backtesting, streaming data to your algorithm in fast-forward. Because of this, you do not have access to price data beyond the Time Frontier. Although streaming analysis is slightly trickier to understand, it allows your algorithm to seamlessly work in backtests and live trading with no code changes.
Algorithm Time Zone
Algorithm time is accessed from the
Time property of MEAlgorithm. Algorithm time defaults to New York timezone for UTC-4 in summer, and UTC-5 in winter. This can be configured by passing an accepted time zone name into the
SetTimeZone() method. A full list of time zone names can be found on Wikipedia.
The result of setting a timezone is saved to your
algorithm.TimeZone property. In addition MEAlgorithm maintains UTC time under the
UtcTime are timezone-less objects. Their state is maintained by the Machina Engine to be consistent.
